- ST ARM ST-LINK 프로그래머 LC2

- ST-Link는 STMicroelectronics의 STM8 및 STM32 마이크로컨트롤러 제품에 사용 가능한 디버거/프로그래머(in-circuit debugger and programmer)입니다.

- STM8 및 STM32 마이크로컨트롤러의 플래시 메모리를 JTAG/SWD 인터페이스로 프로그래밍(Read/Write) 및 디버깅할 수 있습니다.

• 5V power supplied by USB connector
• USB 2.0 full speed interface compatible
• USB standard A to Mini-B cable provided

- SWIM specific features

• 0.65V to 5.5V application voltage supported on SWIM interface
• SWIM low speed and high speed modes supported
• SWIM programming speed rate: 9.7 Kbytes/s in low speed, 12.8 Kbytes/s in high speed
• SWIM cable for ERNI standard connector vertical(ref: 284697 or 214017) or horizontal(ref: 214012)
• SWIM cable for pin headers or 2.54mm pitch connector

- JTAG/SWD specific features

• 3V to 3.6V application voltage supported on JTAG/SWD interface and 5V tolerant inputs
• JTAG/SWD cable provided for standard JTAG 20-pin 2.54mm connector
• Direct firmware update feature supported (DFU)
• Status LED blinks during communication with PC
• Operating temperature: 0 to 50°C

- Supported Devices

STM32

STM32F100xx, STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx, STM32F107xx, STM32F2xxx, STM32F4xxx, STM32L15xx6, STM32L15xx8, STM32L15xxB, STM32L151xC, STM32L151xD, STM32L152xC, STM32L152xD, STM32L162xD, STM32TS60, STM32W108C8, STM32W108xB, STM32W108xC, STM32W108xZ

STM8

STM8AF51x, STM8AF52x, STM8AF61x, STM8AF62x, STM8AH51x, STM8AH61x, STM8S003K3, STM8S003F3, STM8S005C6, STM8S005K6, STM8S007C8, STM8S103xx, STM8S105xx, STM8S207xx, STM8S208xx, STM8S903F3, STM8S903K3, STM8L101xx, STM8L15x, STM8L16x, STM8TL52x4, STM8TL53x4

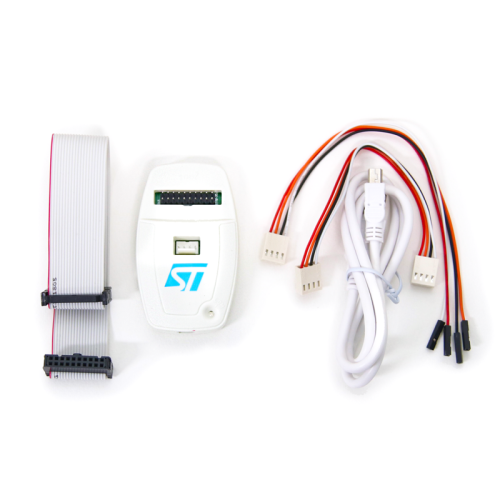

- ST ARM ST-LINK 프로그래머 LC2 * 1pcs
