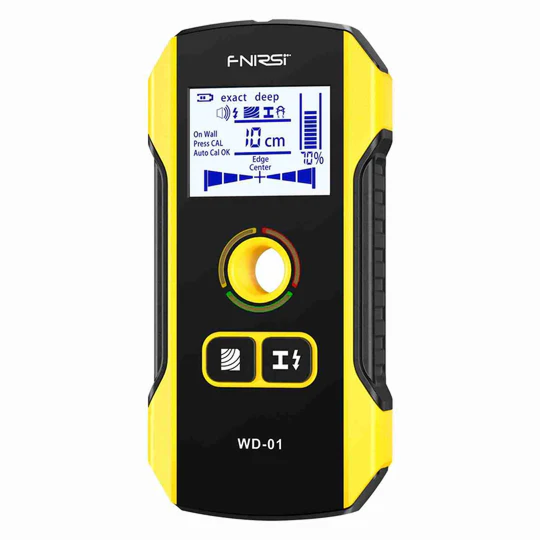

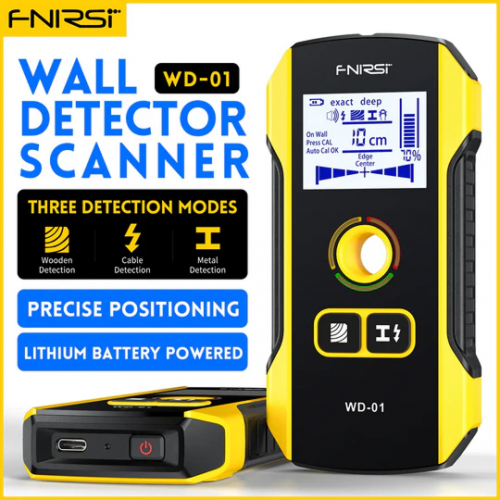

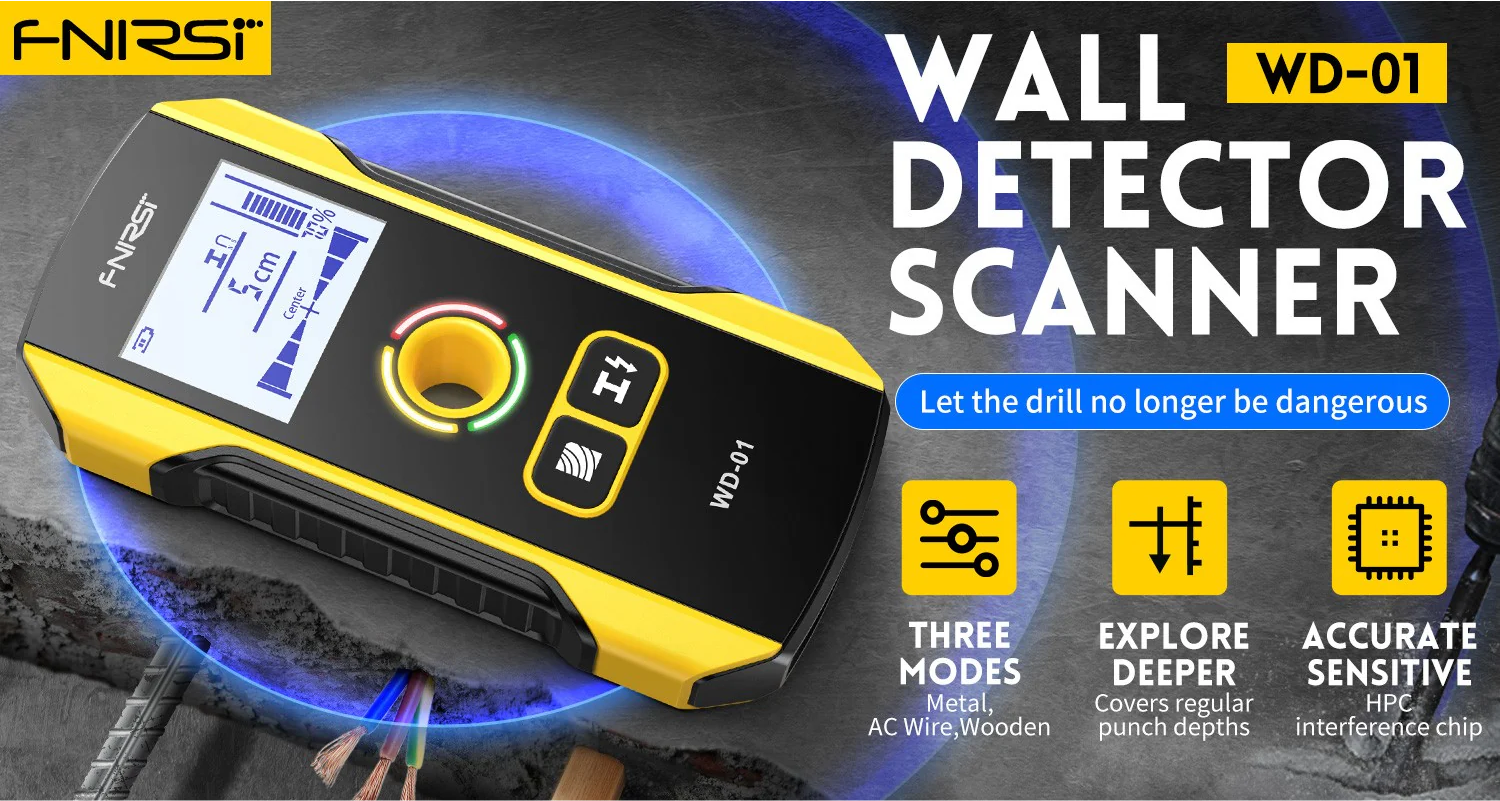

WD-01 벽체 금속 탐지기&스캐너

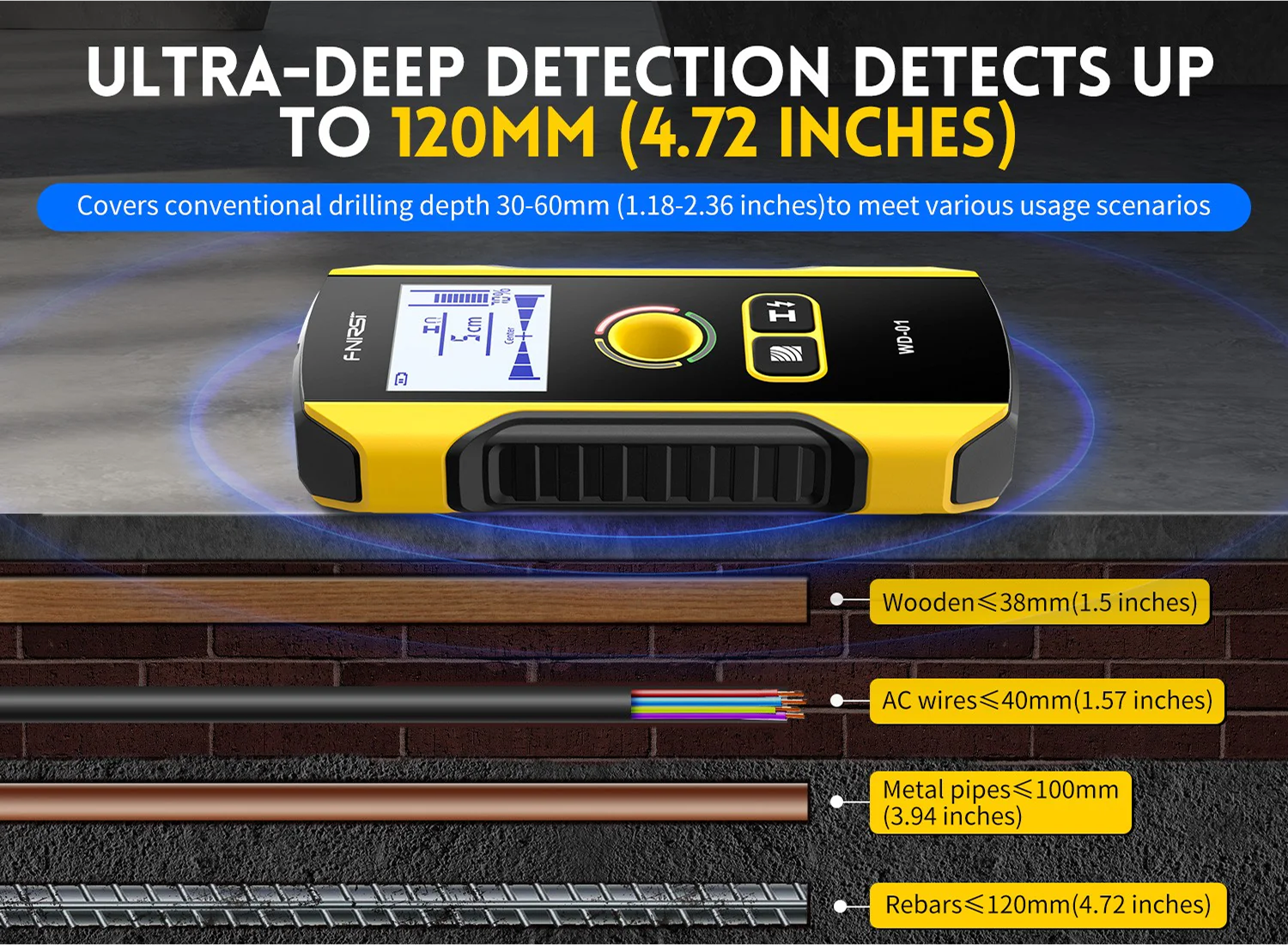

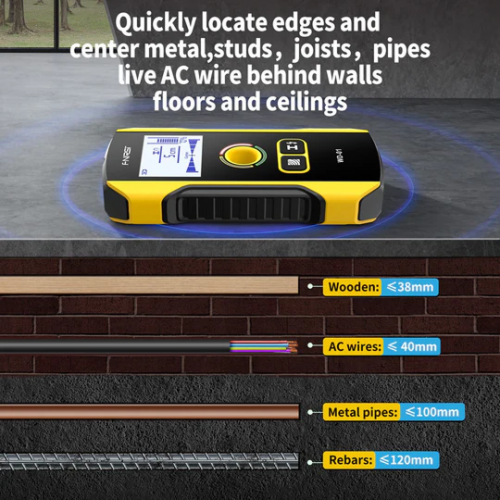

WD-01 wall detector scanner can help you to quick locate edges and center metal, studs, joists, pipes and live AC wire behind walls, floors and ceiling. The measuring ranges of wooden is ≤38mm, AC wires ≤40mm, metal pipes ≤100mm and rebars ≤120mm.

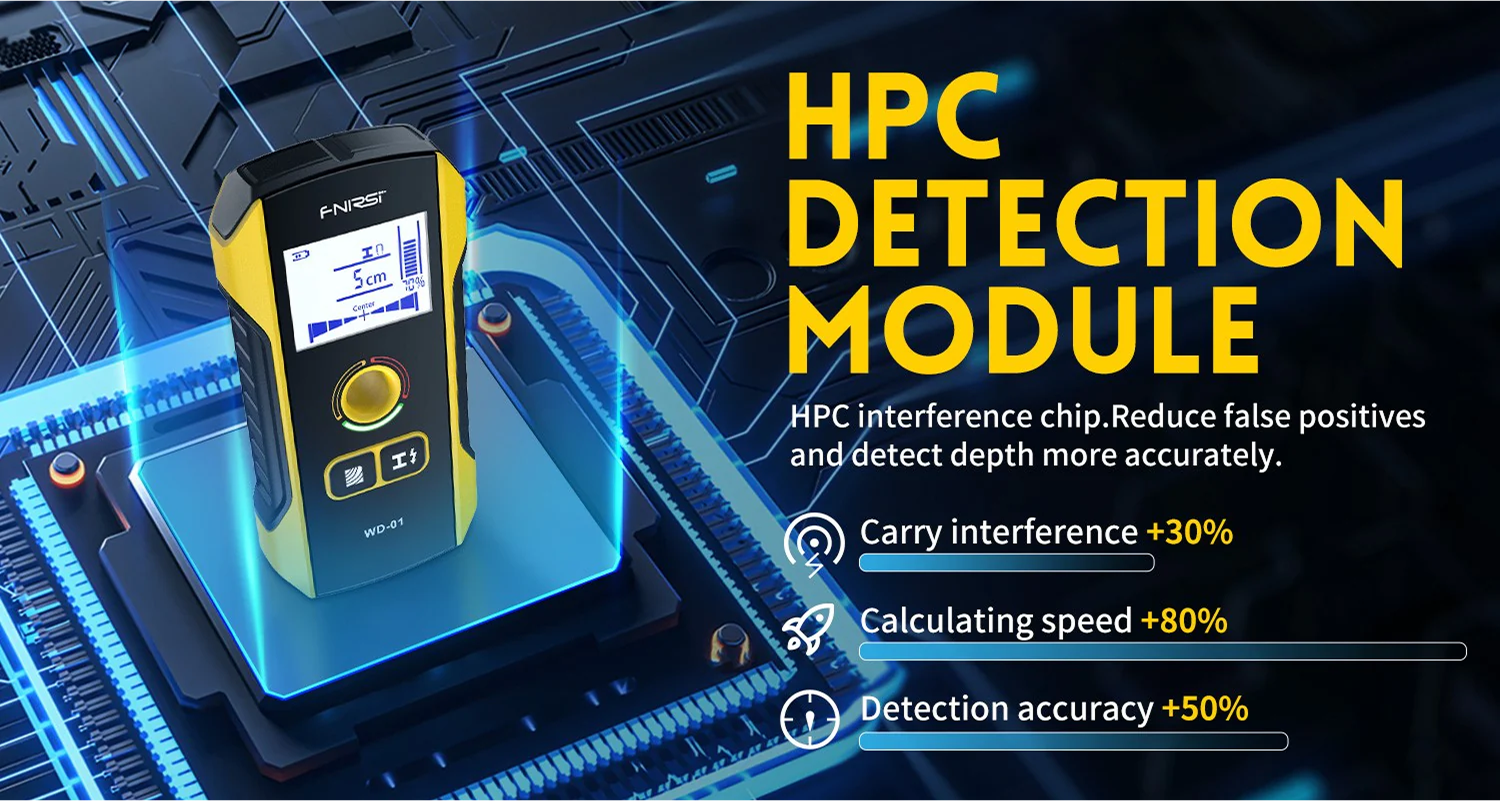

The HPC detection module can makes this wall detector scanner with better anti-interference capacity and fater calculating speed.

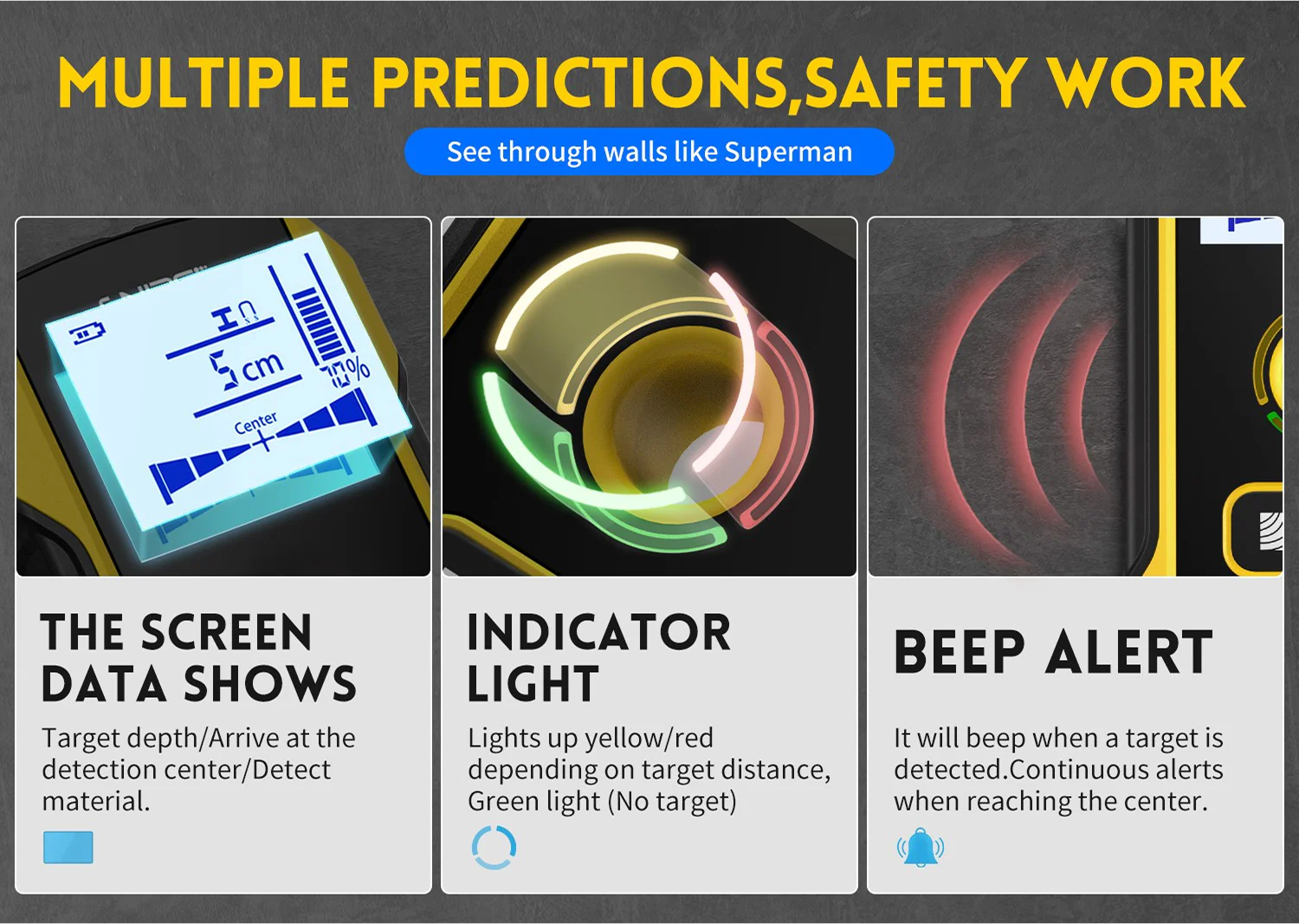

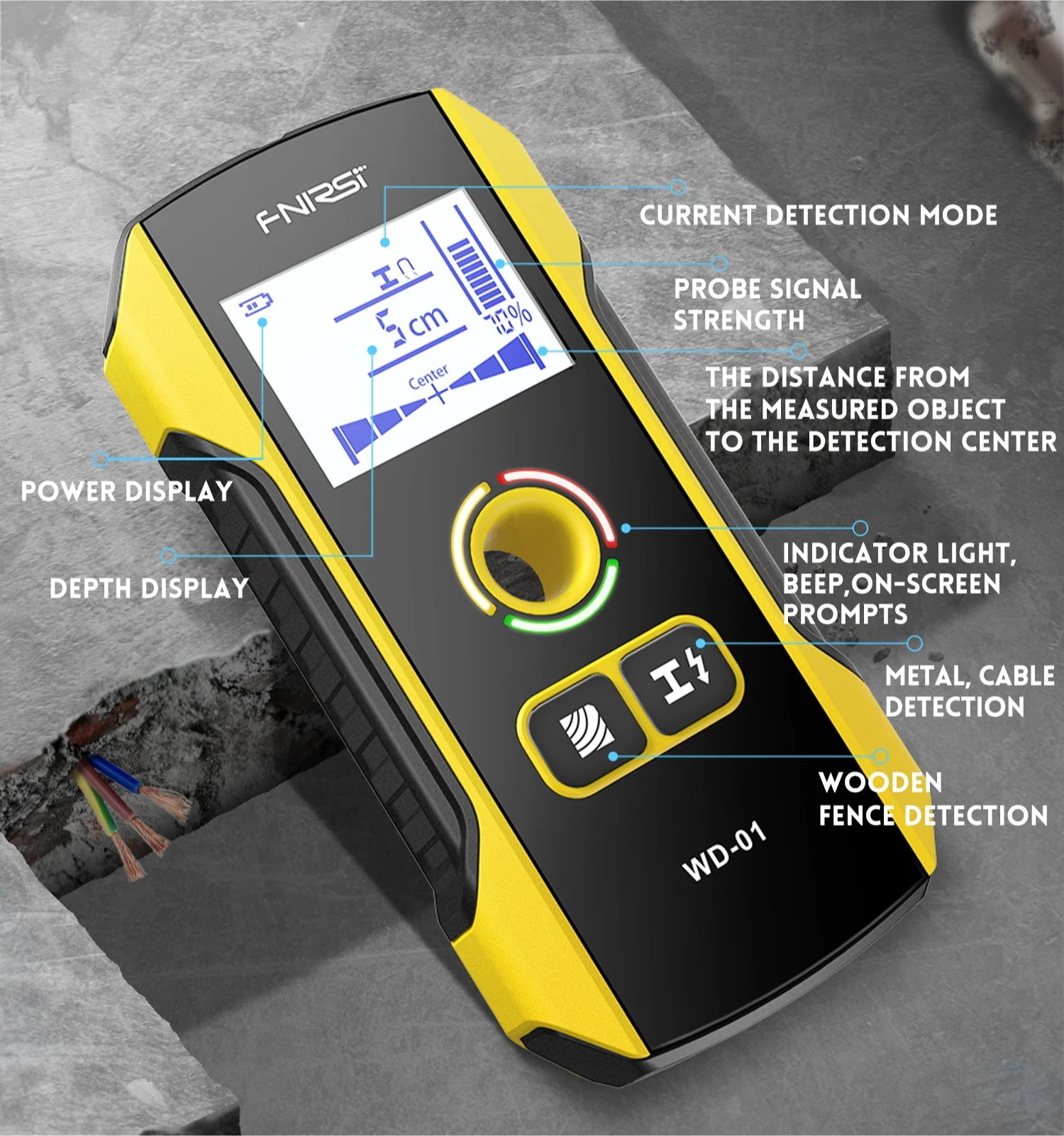

Multiple predictions: The screen will display the target depth, arrive at the detection center and the material, the indicator light will lights up yellow or red depending on the target distance, the green light means No traget.
It will also beep when a target is detected. It will continuous alerts when reaching the center.
Wide Applications: This tool can be widely used in your home decoration, wall decoration, household appliance installation, highway maintenance and so on.
Center positioning hole design, you can directly mark the drilling position after detection and achieve precisions drilling.
The HPC detection module can makes this wall detector scanner with better anti-interference capacity and fater calculating speed.
Multiple predictions: The screen will display the target depth, arrive at the detection center and the material, the indicator light will lights up yellow or red depending on the target distance, the green light means No traget.
It will also beep when a target is detected. It will continuous alerts when reaching the center.
Wide Applications: This tool can be widely used in your home decoration, wall decoration, household appliance installation, highway maintenance and so on.
Center positioning hole design, you can directly mark the drilling position after detection and achieve precisions drilling.

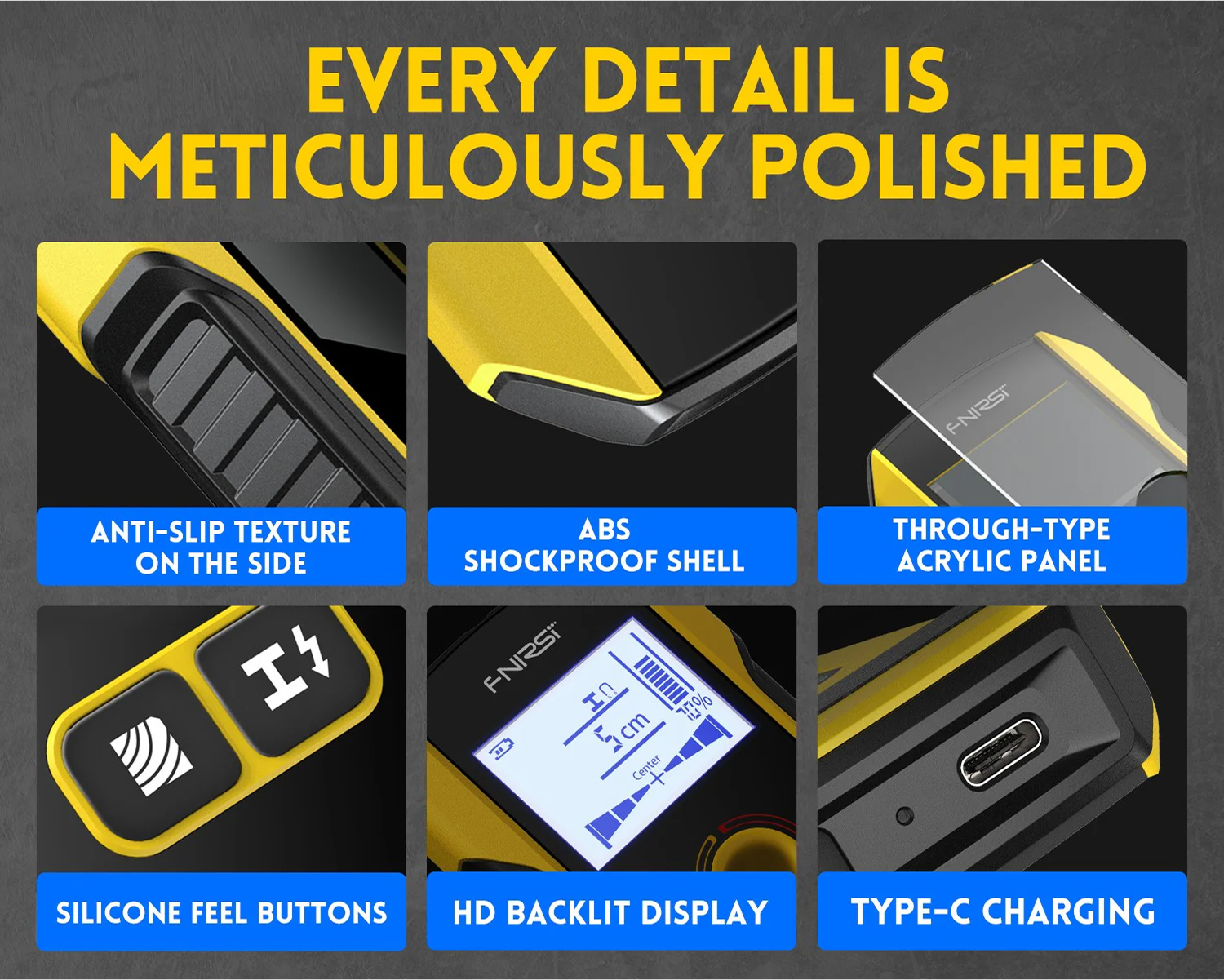

Features
- - Portable Size: Convenient and easy to hold.

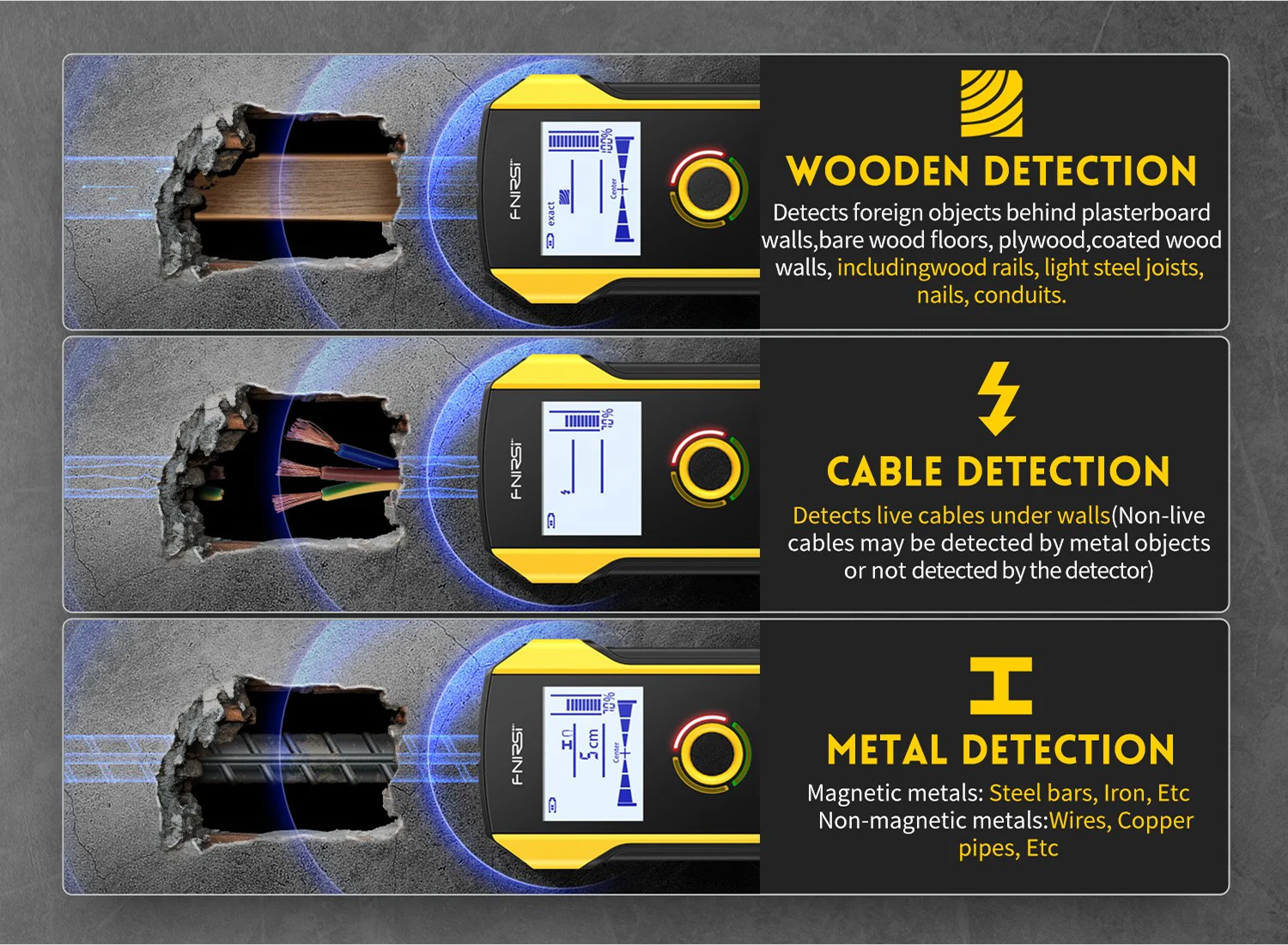

- - Detection Capabilities: Locates various materials behind walls, floors, and ceilings.
- - HPC Detection Module: Enhances anti-interference and calculation speed.
- - Multiple Predictions: Displays target depth, center, and material.
- - Wide Applications: Useful for home and highway maintenance.
- - Center Positioning Hole Design: Enables precise drilling after detection.

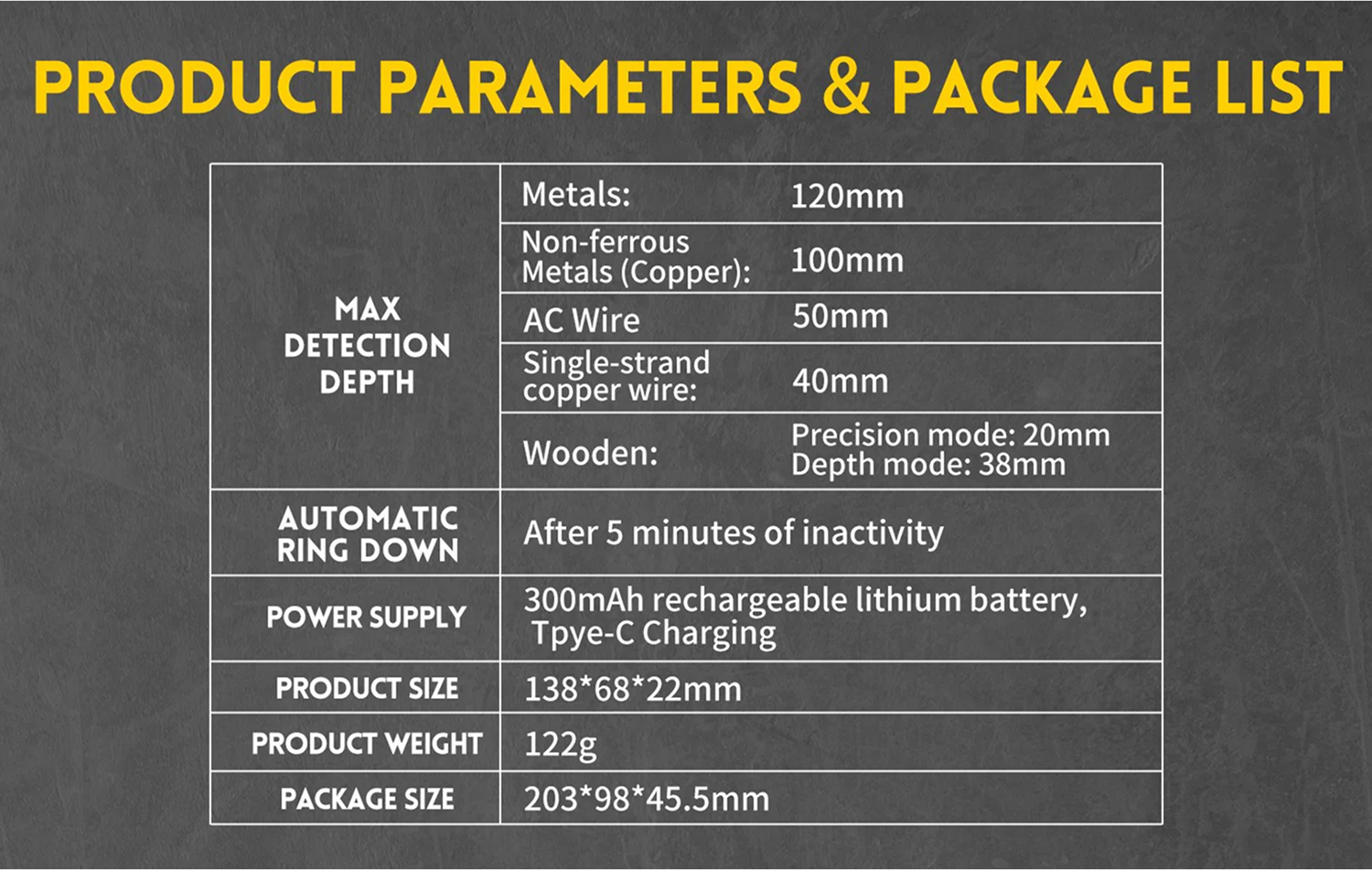

Specifications
Brand
FNIRSI
Model
WD-01
Max Detection Depth of Metals
120mm
Max Detection Depth of Non-ferrous Metals(Copper)
100mm
Max Detection Depth of AC Wire
50mm
Max Detection Depth of Single-strand Copper Wire
40mm
Max Detection Depth of Wooden
Precisions mode: 20mm
Depth mode: 38mm
Depth mode: 38mm
Automatic Shut Down
After 5 minutes without any operation
Power Supply
3.7V 300mAh rechargeable lithium battery,Tpye-C Charging
Product Size
138*68*22mm
Product Weight
122g
