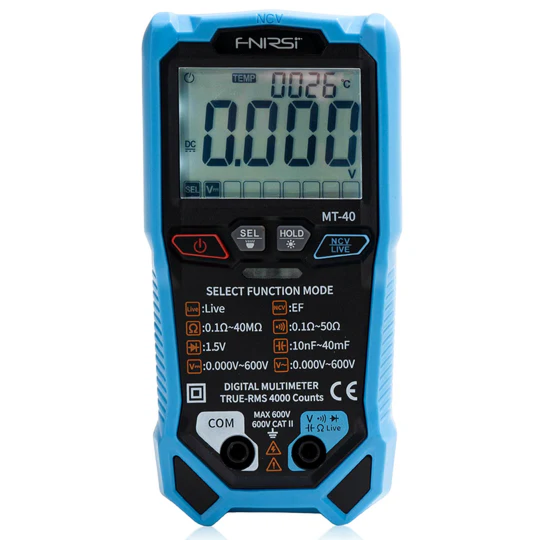

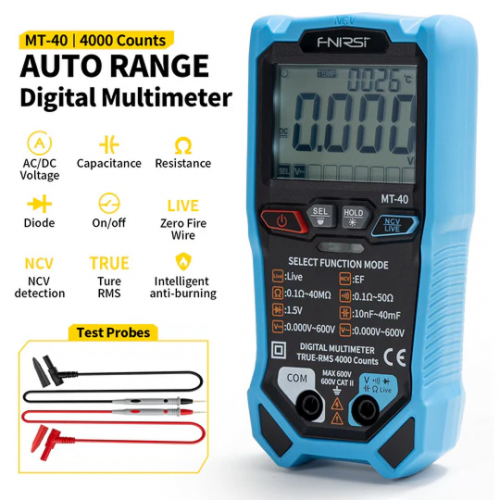

MT-40 스마트 디지털 멀티미터 (4000카운트, True RMS, 자동 범위)




The MT-40 is a cutting-edge multimeter designed to simplify and enhance measurement tasks. Equipped with a high-definition backlit LCD display, it delivers clear and easy-to-read measurements. Its intelligent auto-ranging feature eliminates manual adjustments, ensuring efficient and accurate results.
Powered by an advanced chip, the MT-40 boasts an ultra-fast sampling rate of 3 times per second, providing real-time data for precise analysis. This powerful device offers various functions, including True RMS measurement, capacitance, resistance, diode testing, and non-contact voltage detection.
With its overload protection and intelligent anti-burning features, the MT-40 safeguards both your measurements and the device itself. The compact and lightweight design, combined with a convenient silicone protective cover, makes the MT-40 the ideal tool for on-the-go professionals.


Features:

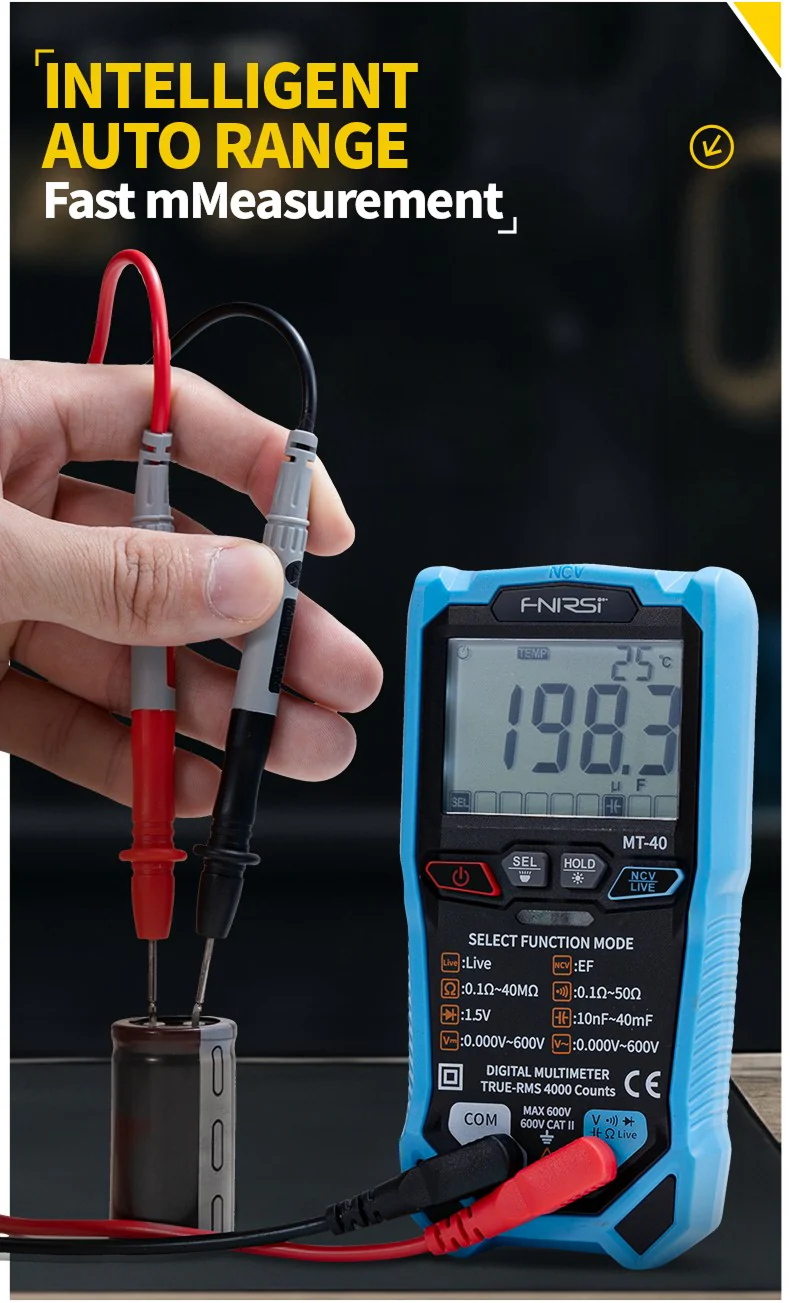

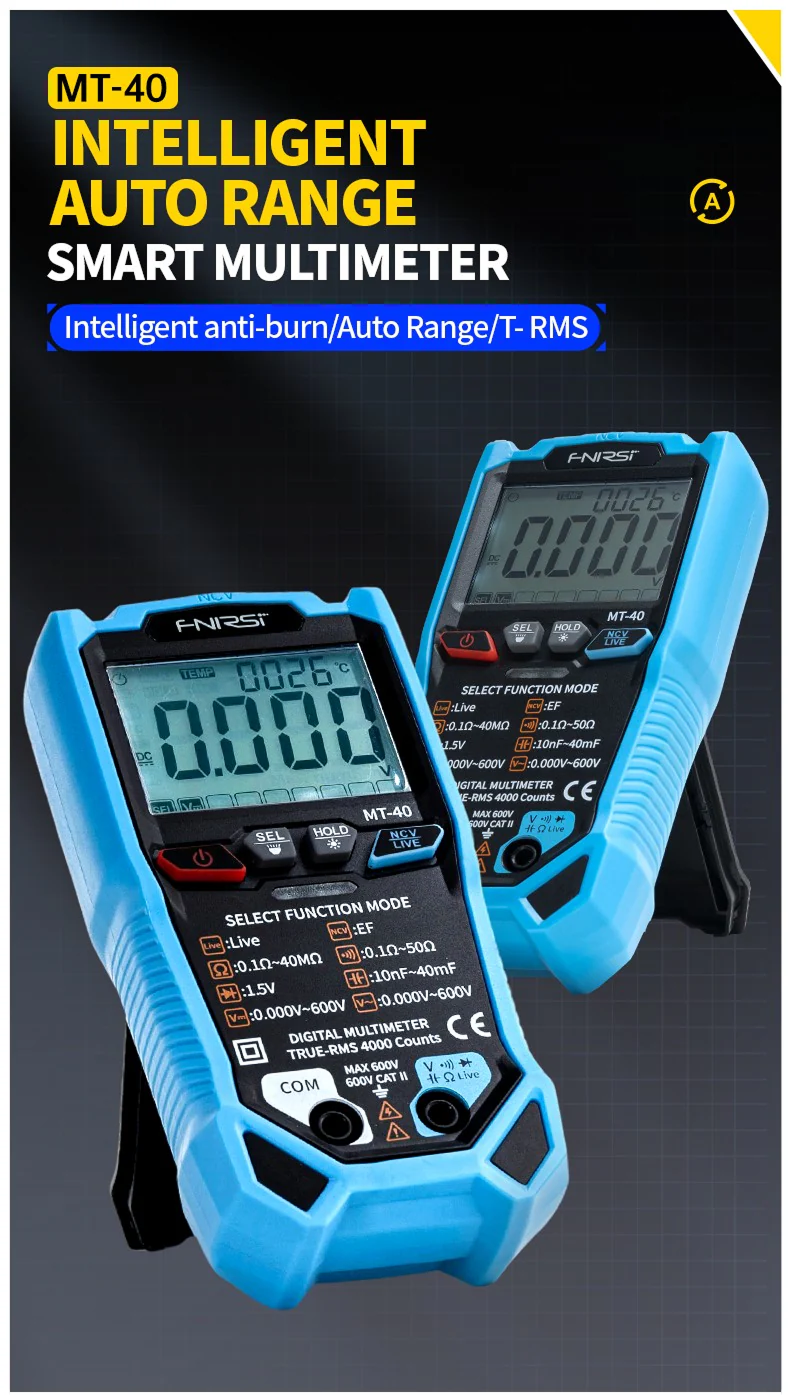

  • Intelligent Auto Range: Efficient and accurate measurements with automatic range adjustment for seamless operation.

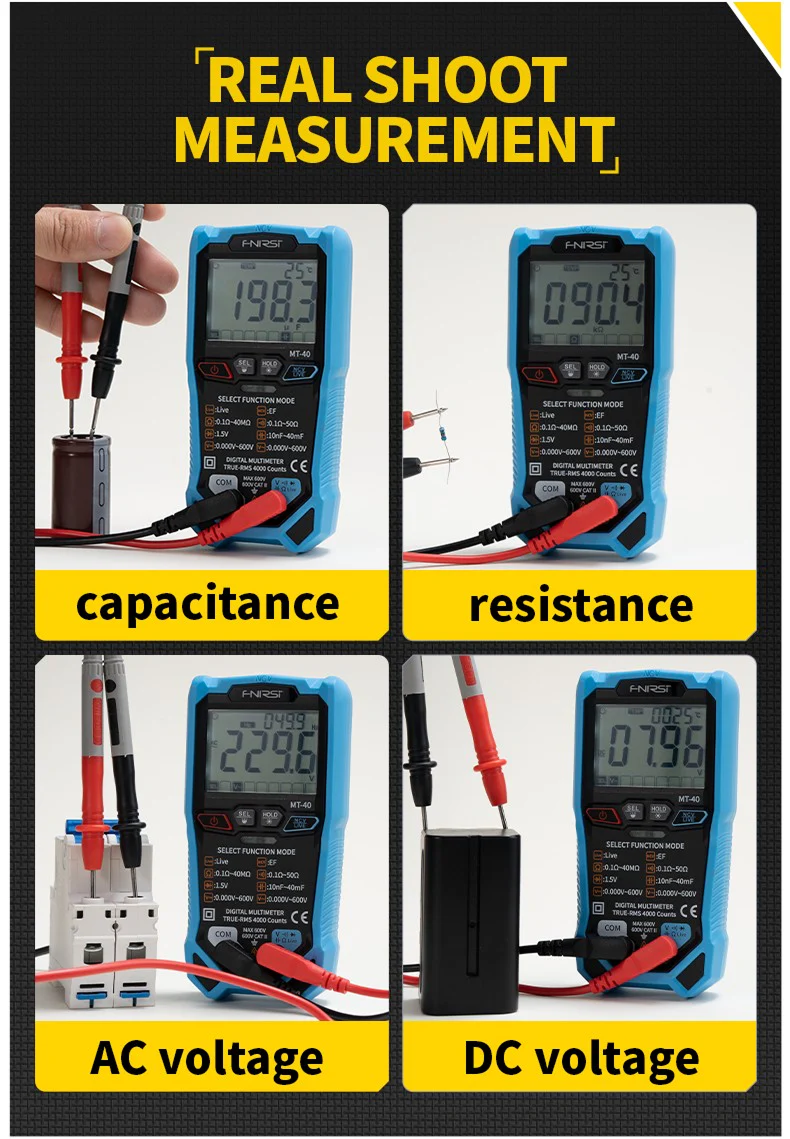

  • Multiple Measurement Capabilities: It supports a wide range of functions, including True RMS measurement, capacitance, resistance, diode testing, and non-contact voltage detection, making it ideal for a variety of electrical diagnostics.
  • Excellent Chip - Powerful Computing: Ultra-fast sampling rate of 3 times per second, delivering enhanced speed and accuracy.

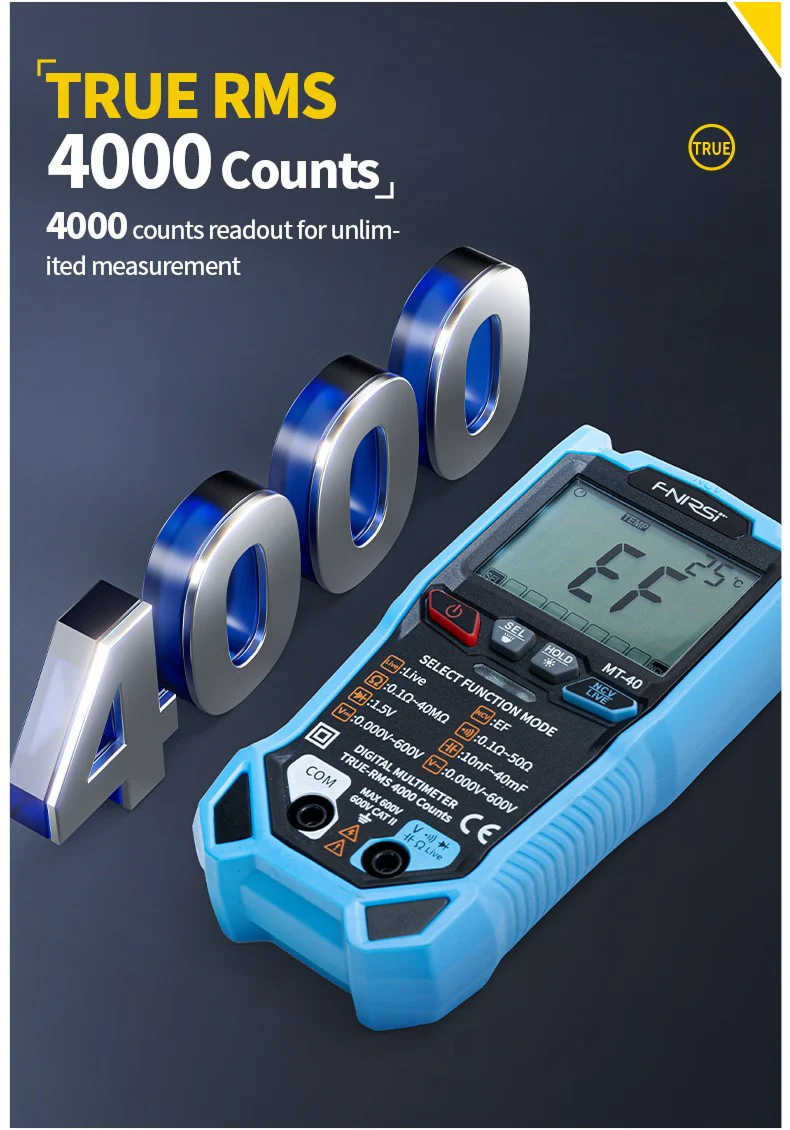

  • True RMS – 4000 Counts: Displays up to 4000 counts for unlimited, detailed measurement, providing superior accuracy.

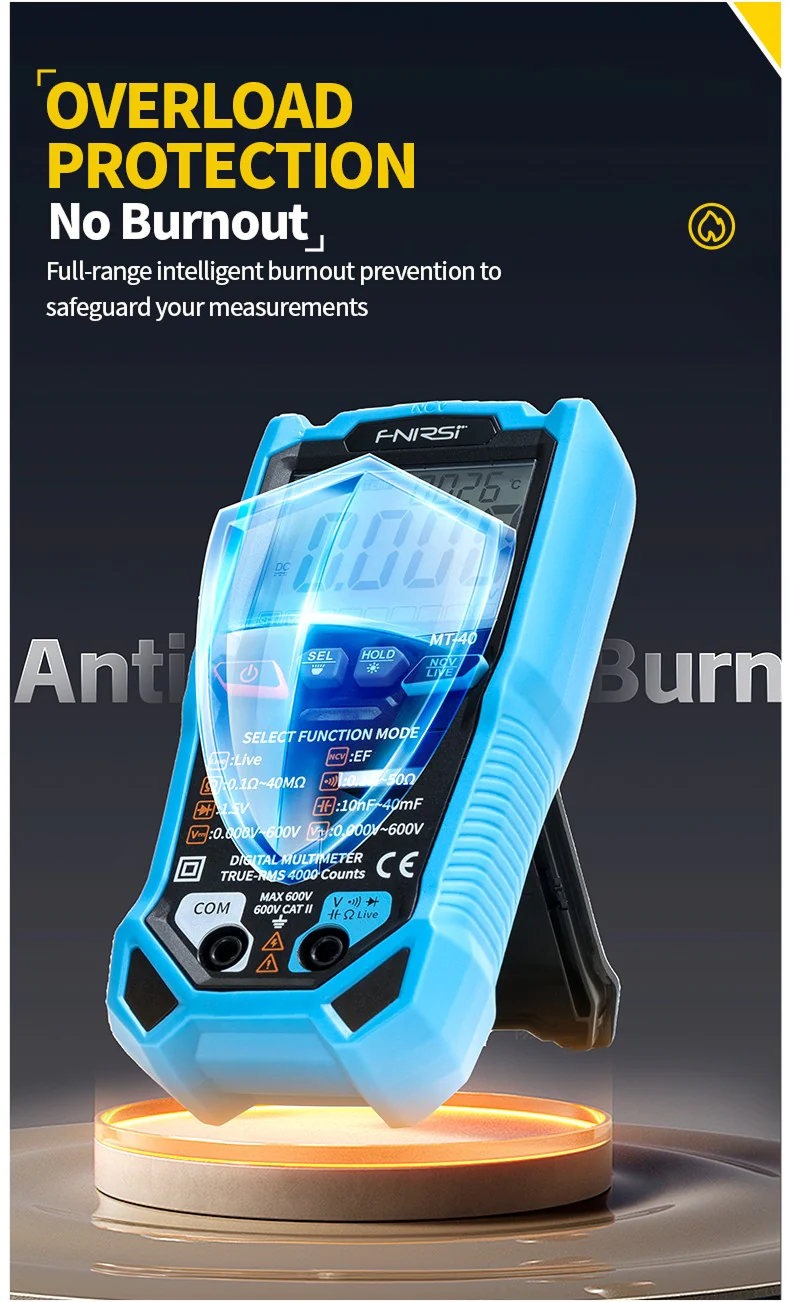

  • Overload Protection – No Burnout: Full-range intelligent burnout prevention to safeguard your measurements.

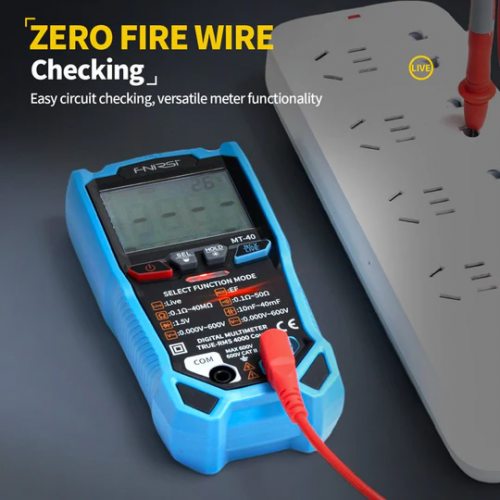

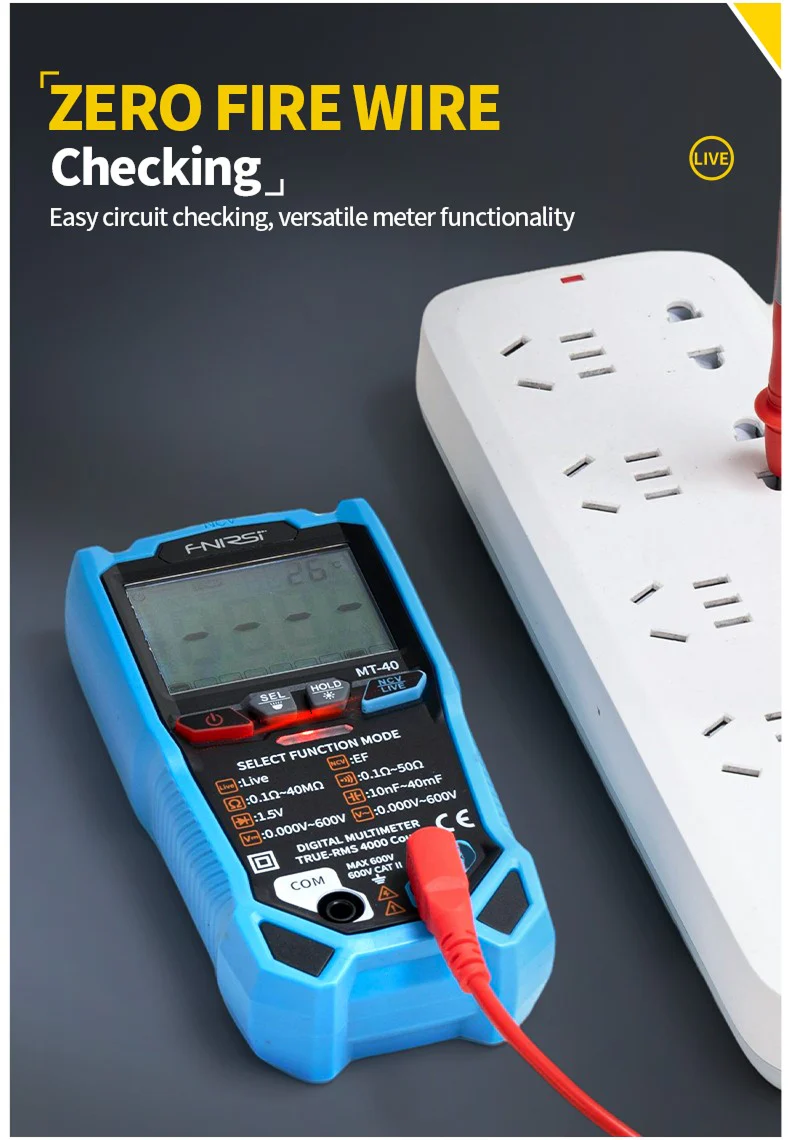

  • Zero Fire Wire Checking: Easy circuit checking, versatile meter functionality.

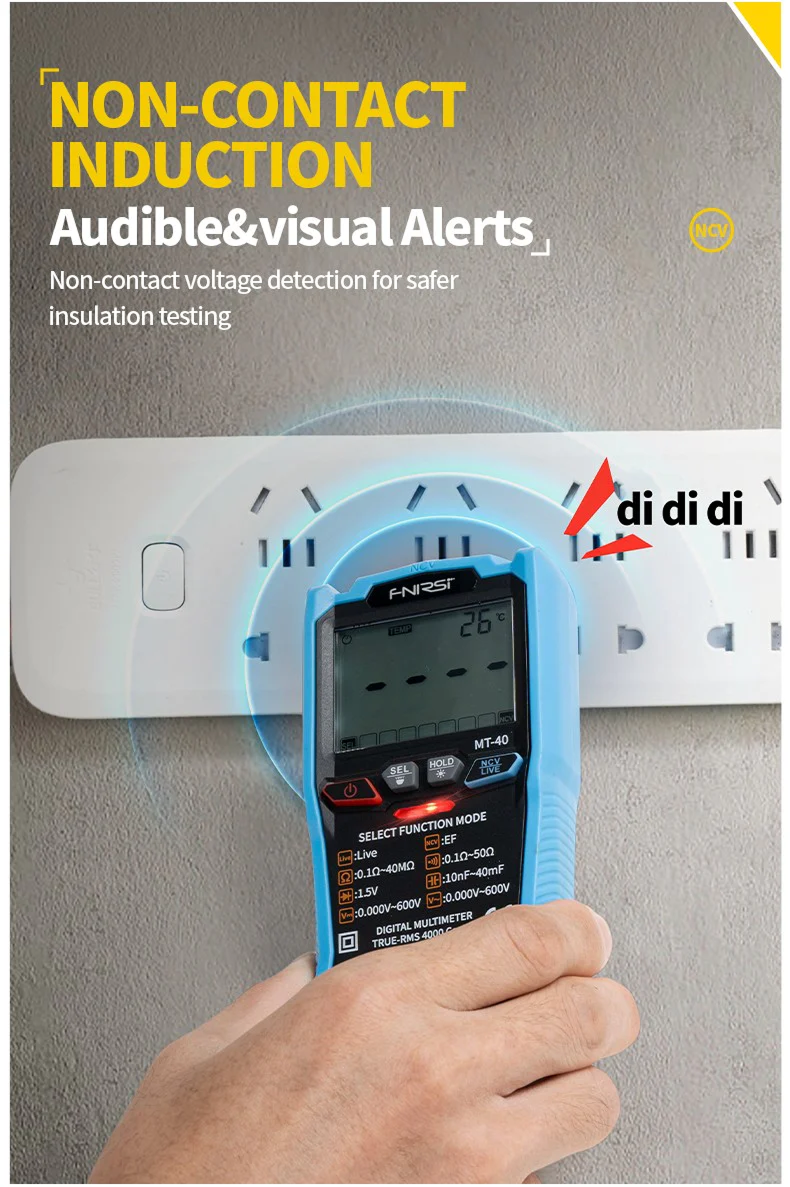

  • Non-Contact Induction – Audible & Visual Alerts: Non-contact voltage detection for safer insulation testing.
  • HD Screen - Backlight Display: Adopt LCD with blacklight, the value show clearly, convenient for operation.

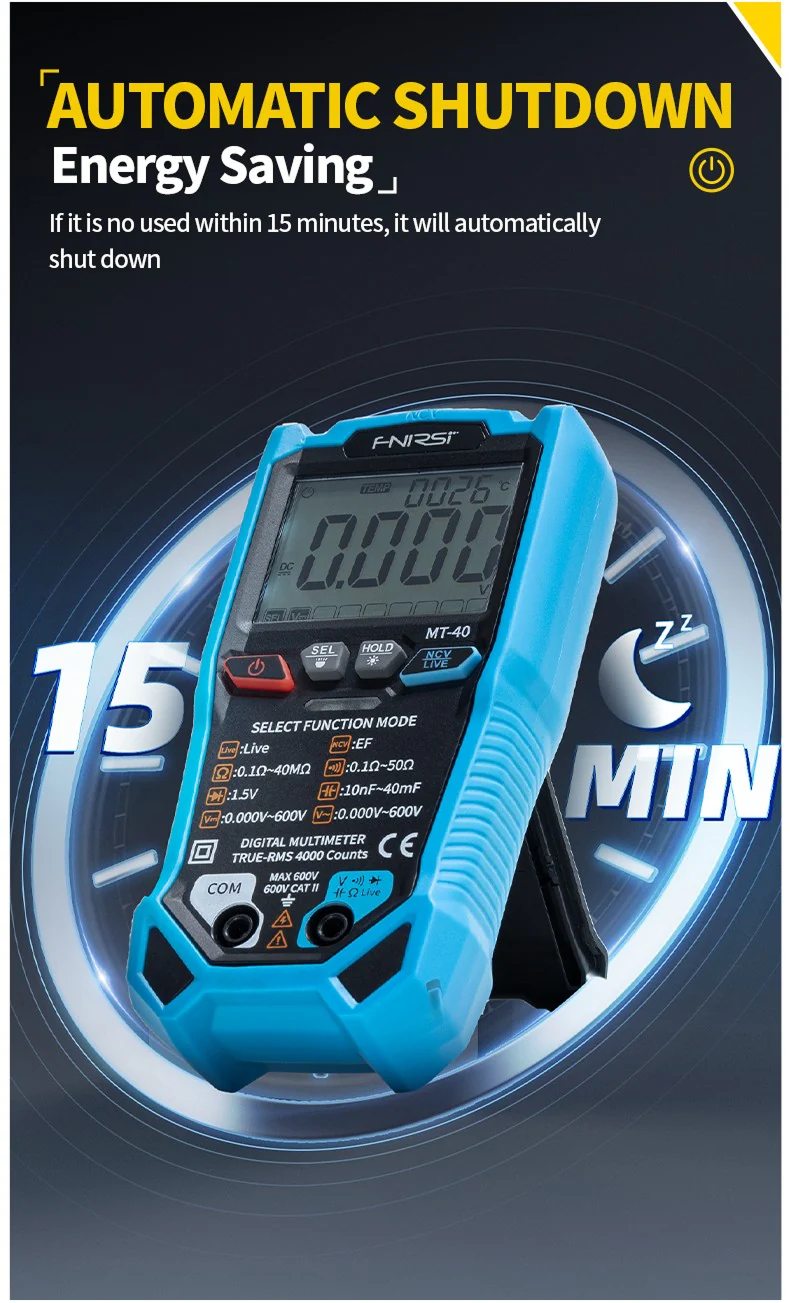

  • Automatic Shutdown – Energy Efficient: Conserves battery by automatically powering off the device after 15 minutes of inactivity.

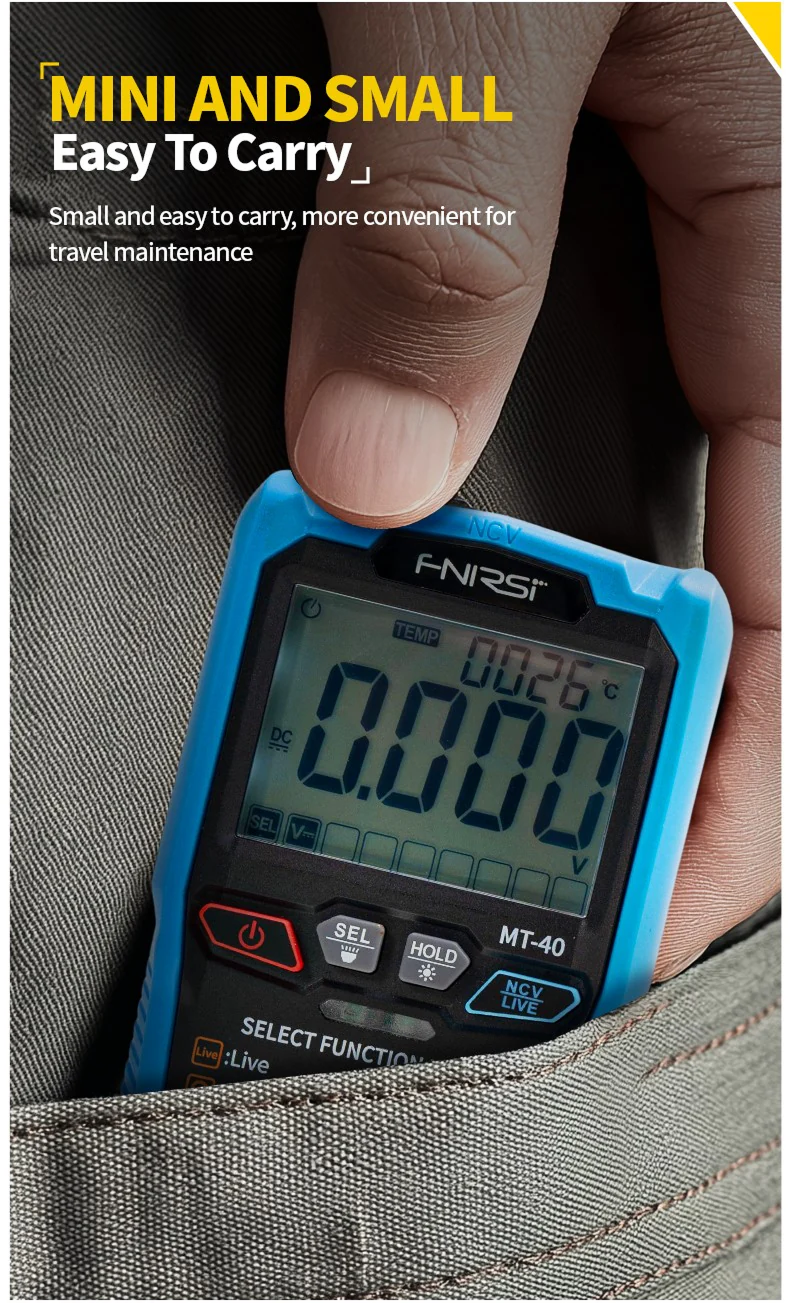

  • Compact and Portable: Lightweight and compact design makes it easy to carry for on-the-go maintenance and repairs.

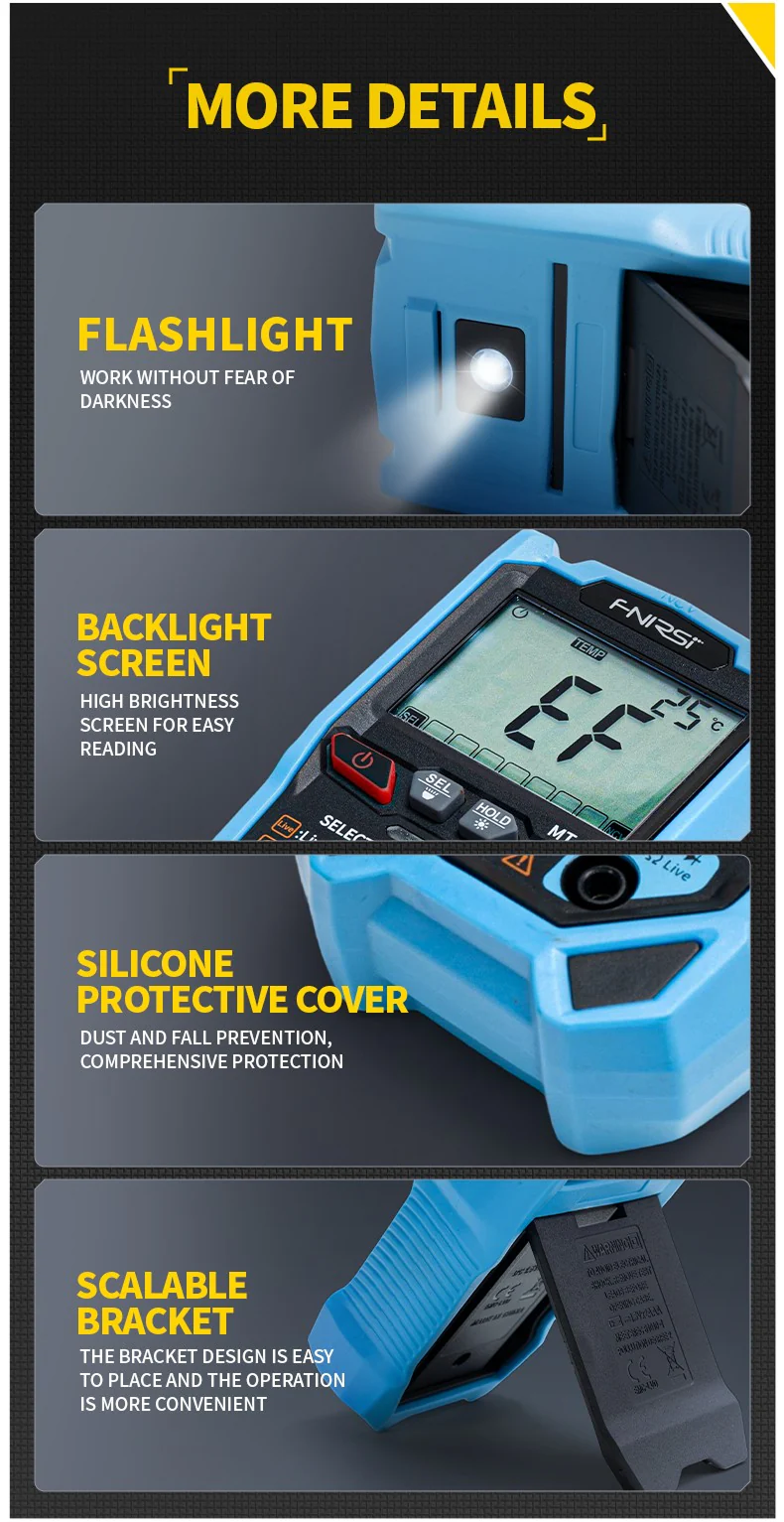

  • Flashlight – Work in Any Condition: Built-in flashlight ensures you can work efficiently even in low-light or dark environments.
  • Backlight Screen – High Brightness for Clear Viewing: The high-brightness screen offers excellent visibility in all lighting conditions.
  • Silicone Protective Cover: Durable silicone cover protects the device from dust and drops, ensuring longevity and reliability.
  • Scalable Stand: Adjustable bracket allows for easy positioning of the meter, improving convenience during use.

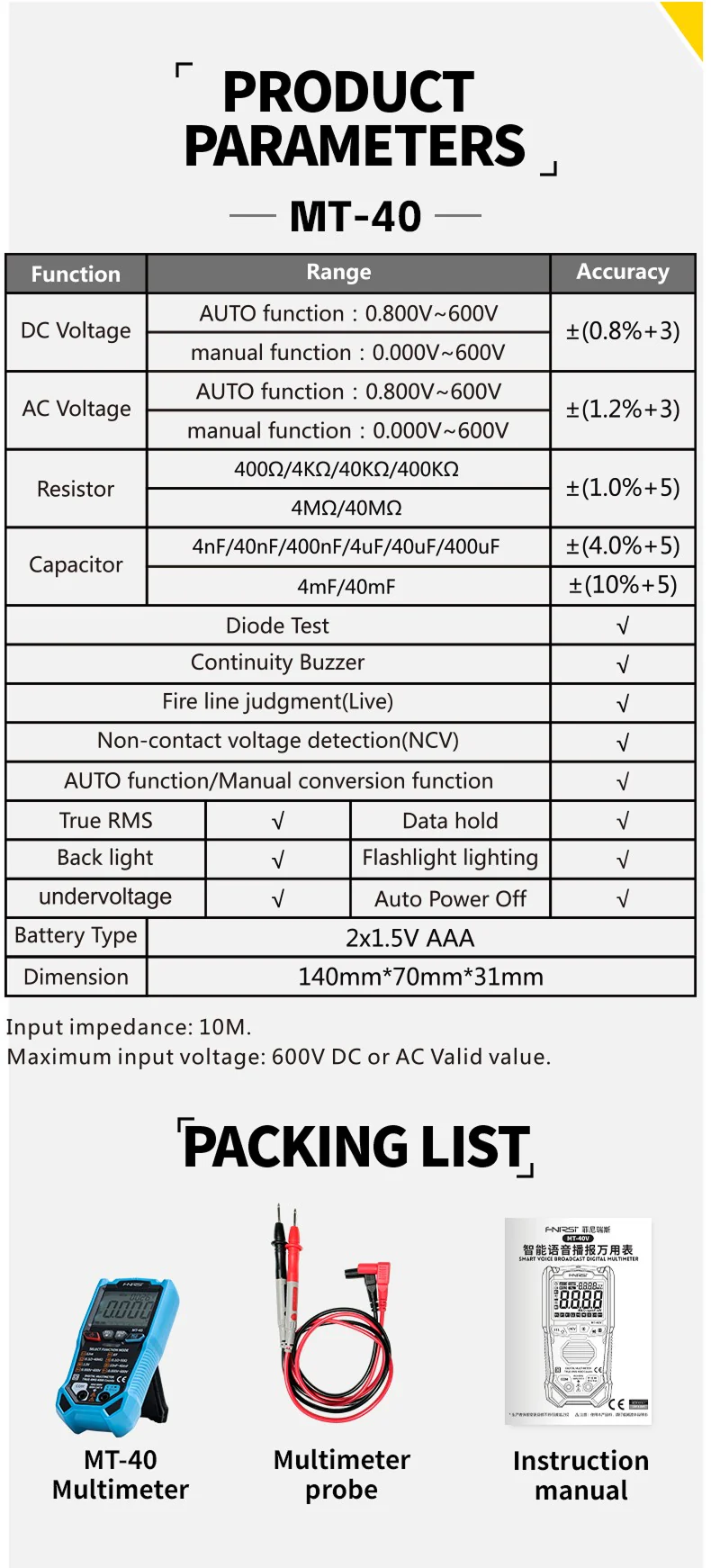

Specifications:

Brand
FNIRSI
Model
MT-40
Dimension
140mm*70mm*31mm
Battery Type
2x1.5V AAA (Not included)
Measuring Rate
3 times/s
Auto Power Off
Yes, 15 minutes
Inputimpedance
10M
Maximum Input Voltage
600V DC or AC Valid value
Current
0
Operating Temperature
0-40℃
DC Voltage
AUTO function: 0.800V-600V
Manual function: 0.000V-600V
AC Voltage
AUTO function :0.800V-600v
Manual function: 0.000V-600V
Resistor
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
Capacitor
4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF
Diode Test
Yes
Continuity Buzzer
Yes
Fire Line Judgment(Live)
Yes
Non-contact Voltage Detection(NCV)
Yes
AUTO function/Manual conversion function
Yes
True RMS
Yes
Back Light
Yes
Undervoltage
Yes
Data Hold
Yes
Flashlight Lighting
Yes
Intelligent Anti-burning
Yes
